Products description

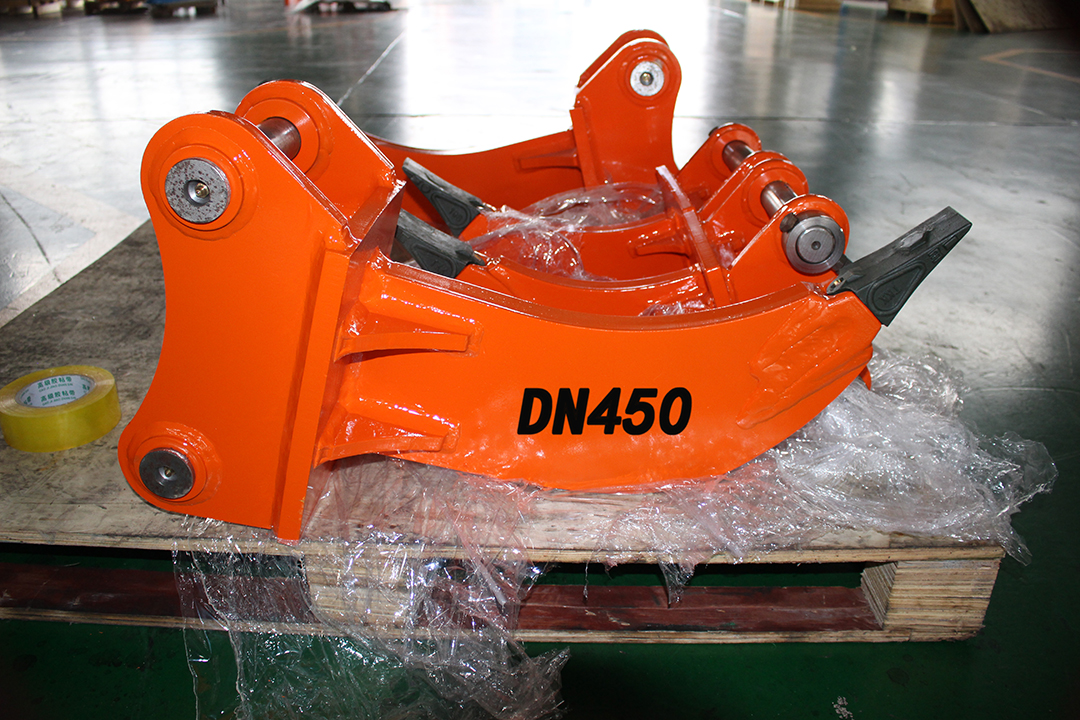

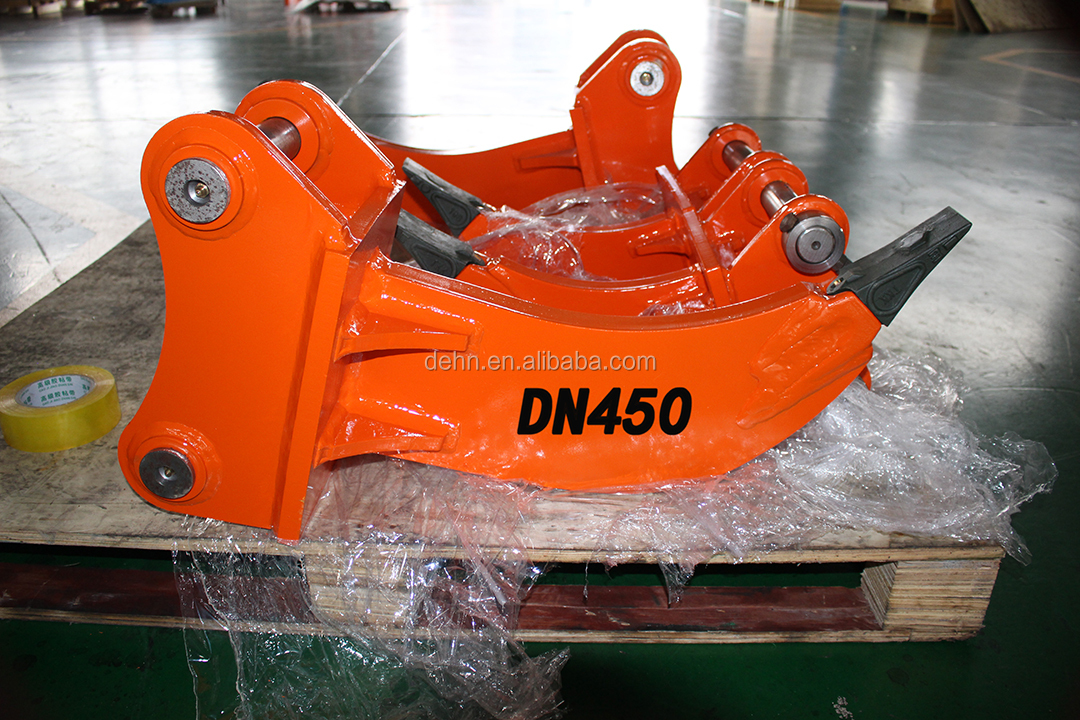

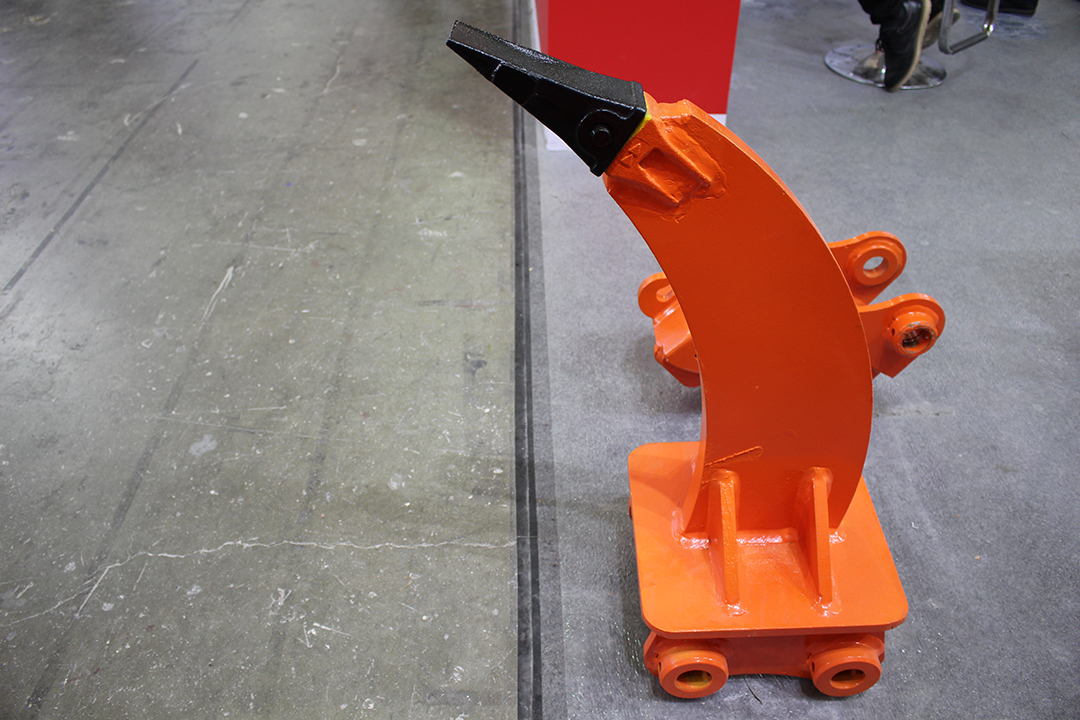

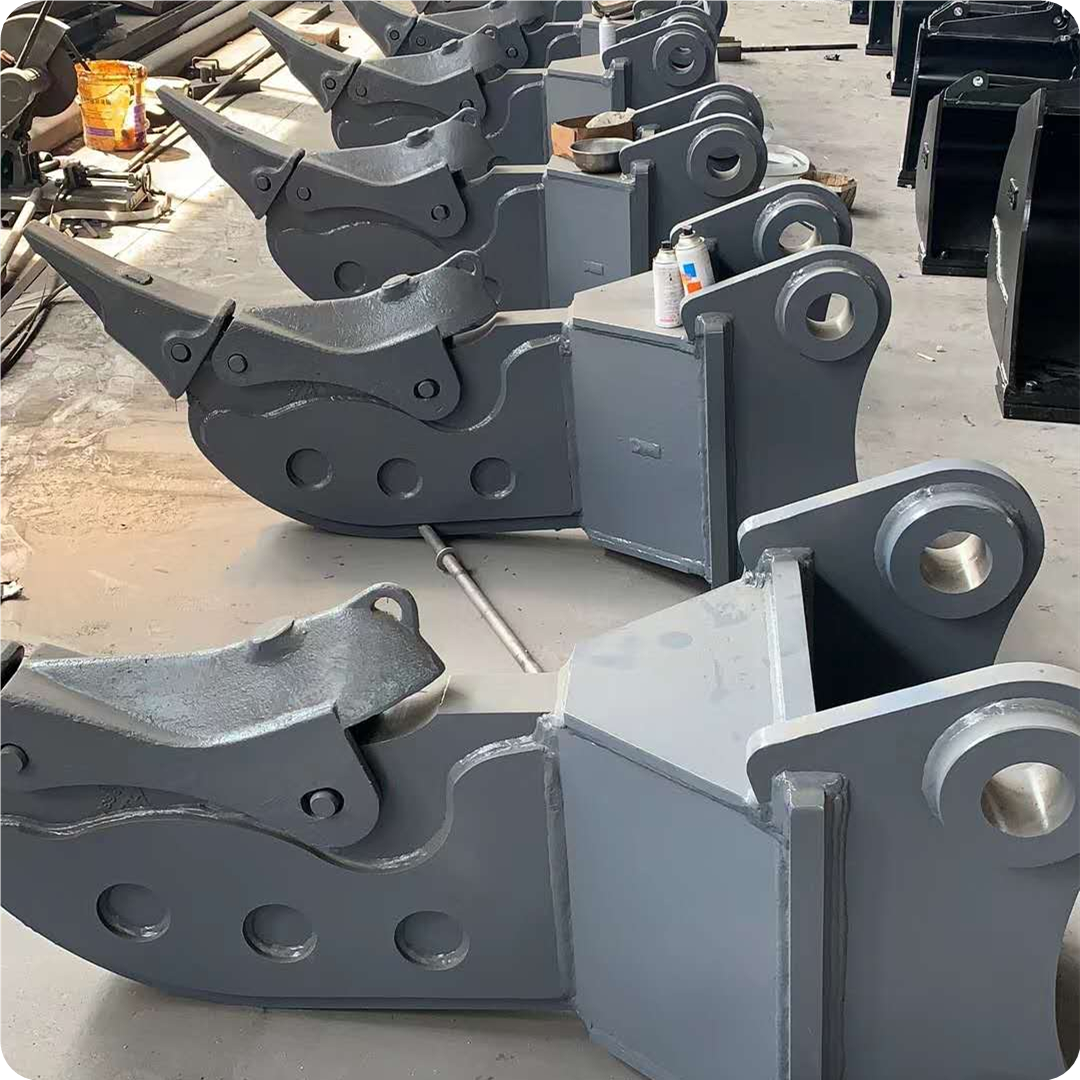

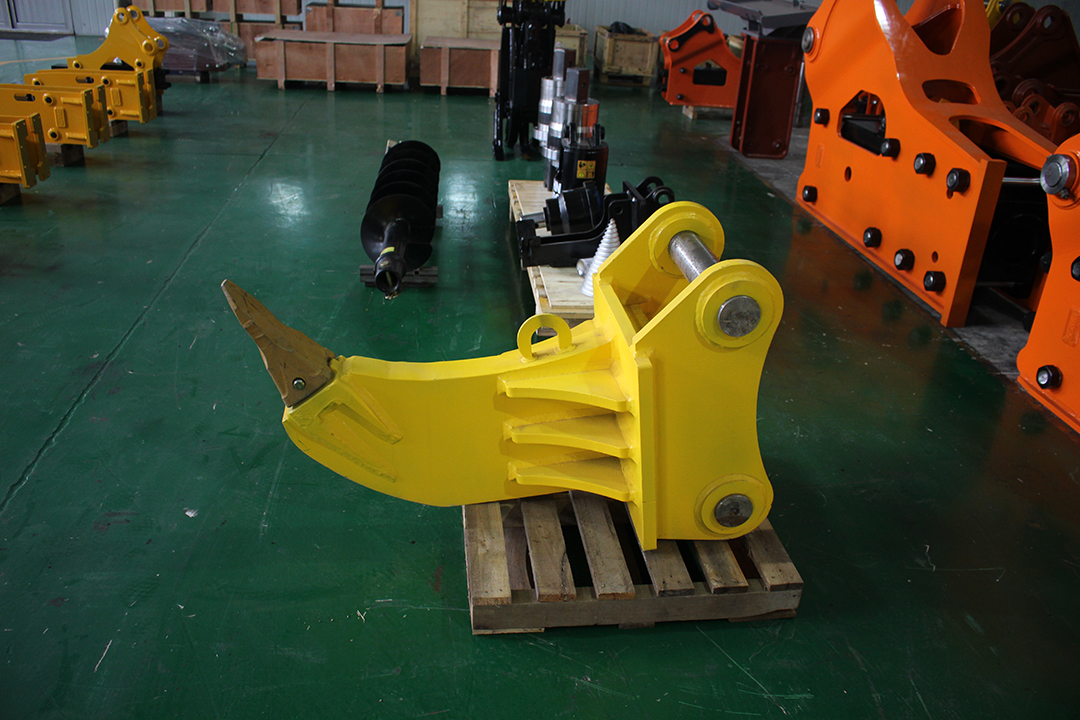

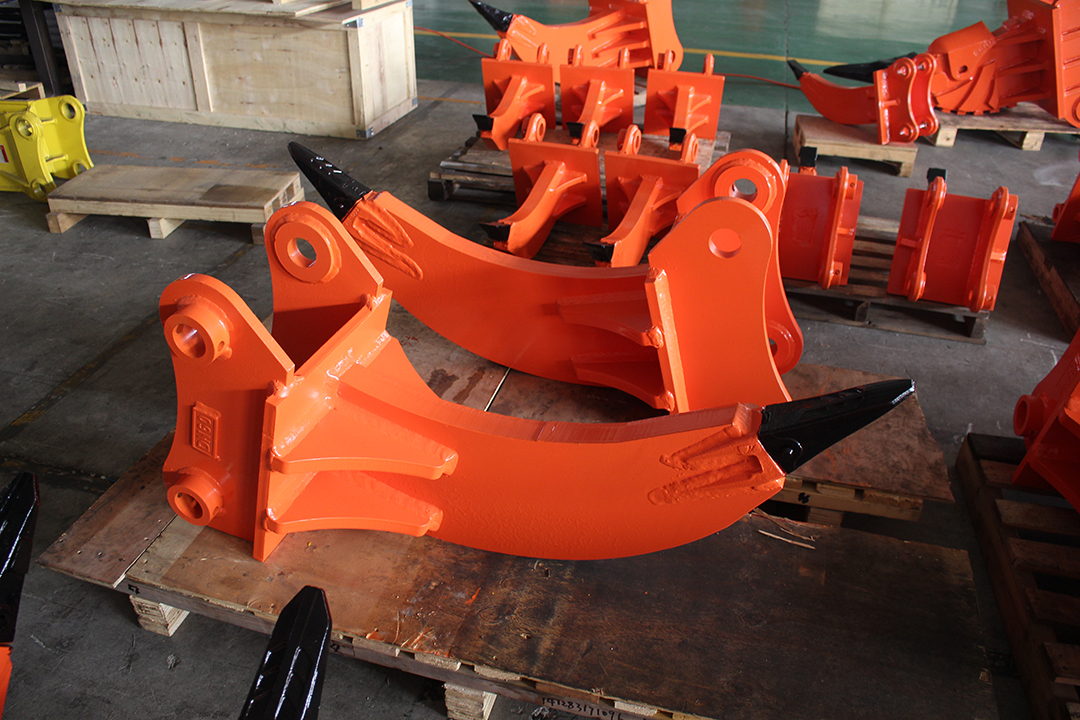

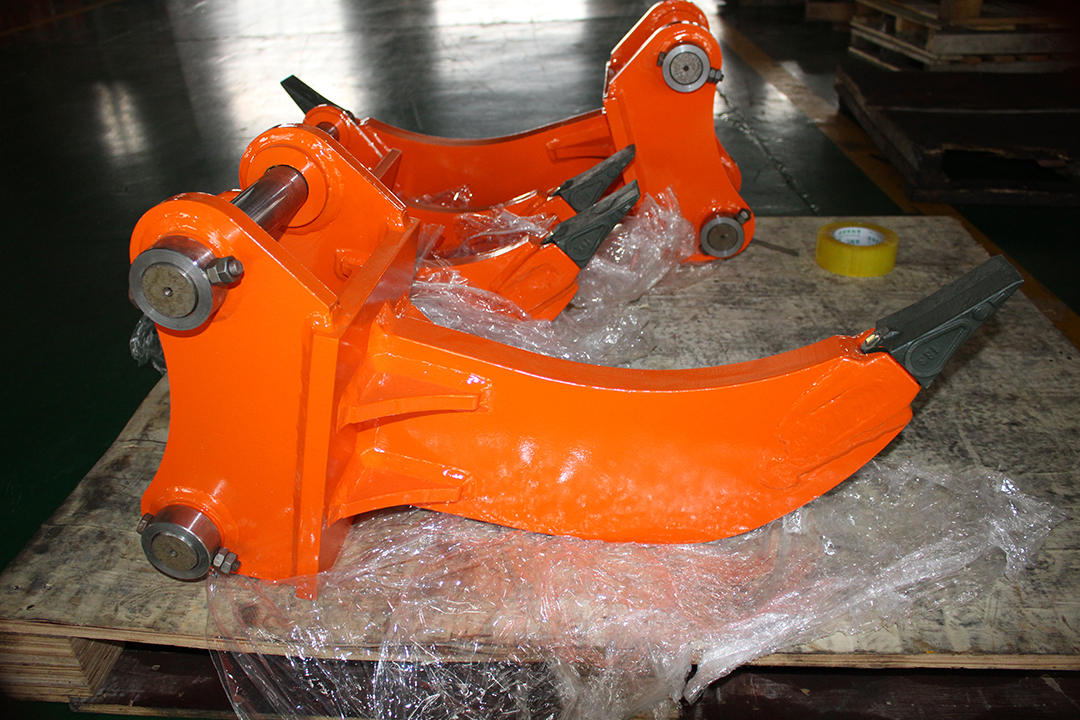

Detail images

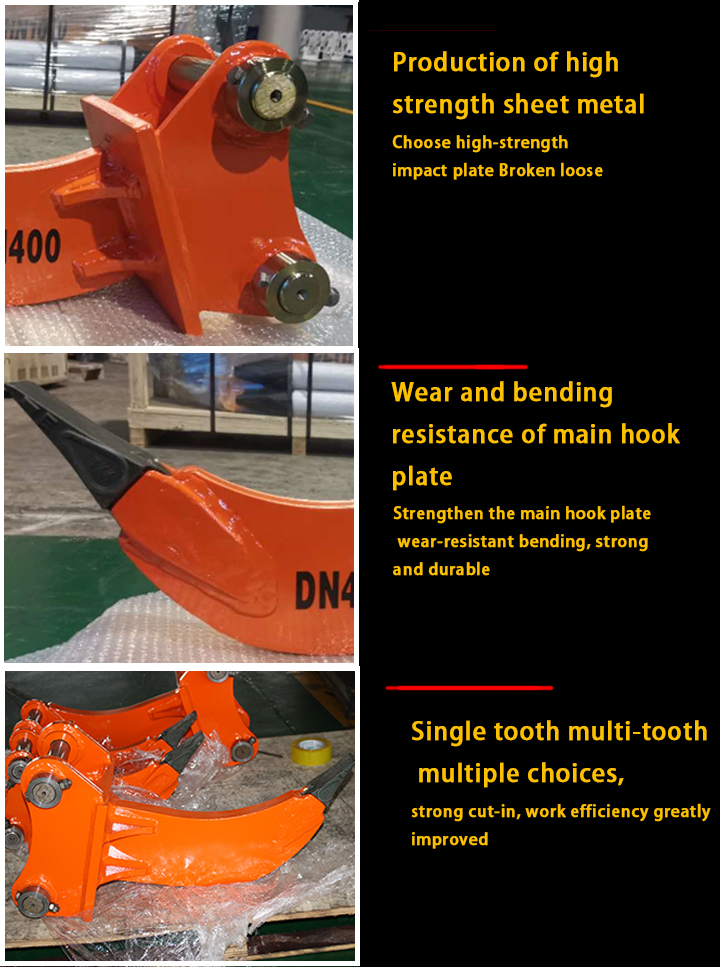

Main features
1.made of high strength steel plate ,easy to use and install.
2.easy for digging and loading
3.1-3 teeth available ,strong digging capacity.
|
model |
unit |
TD02 |
TD04 |
TD06 |
TD08 |
TD10 |
TD17 |
TD20 |
TD30 |
|
pin to pin distance |
mm |
265 |
310 |
390 |
465 |
520 |
570 |
customized |
customized |
|
overall width |
mm |
375 |
420 |
570 |
664 |
740 |
820 |
customized |
customized |
|
overall height |
mm |
390 |
950 |
1180 |
1260 |
1380 |
1470 |
1660 |
1800 |
|
pin diameter |
mm |
40-50 |
50-55 |
60-70 |
70-80 |
80-90 |
80-90 |
customized |
customized |
|
opening width |
mm |
150-180 |
180-200 |
200-315 |
300-350 |
360-420 |
360-420 |
customized |
customized |
|
plate thickness |
mm |
50 |
55 |
65 |
80 |
90 |
90 |
120 |
120 |
|
weight |
kg |
60 |
160 |
245 |
420 |
620 |
775 |
customized |
customized |
|
suitable excavator |
ton |
4-6 |
5-9 |
9-16 |
16-23 |
23-30 |
30-50 |
50-64 |
65-90 |

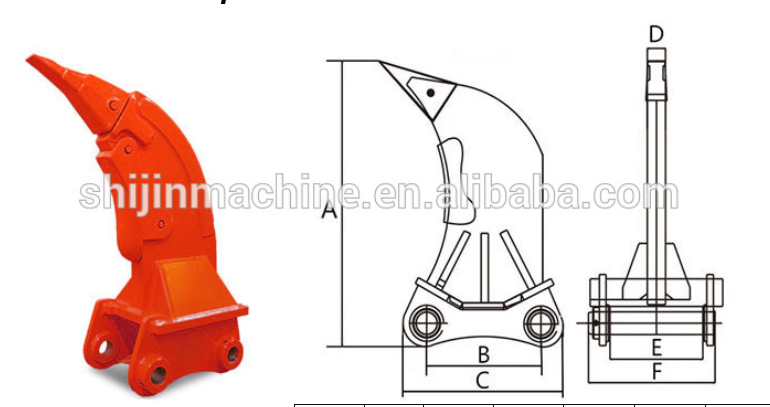

When you need to purchase customized ripper, please measure A / B / C / D / E /F,according to the drawing

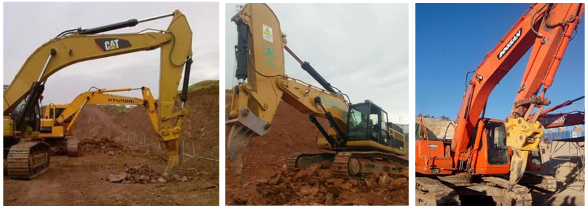

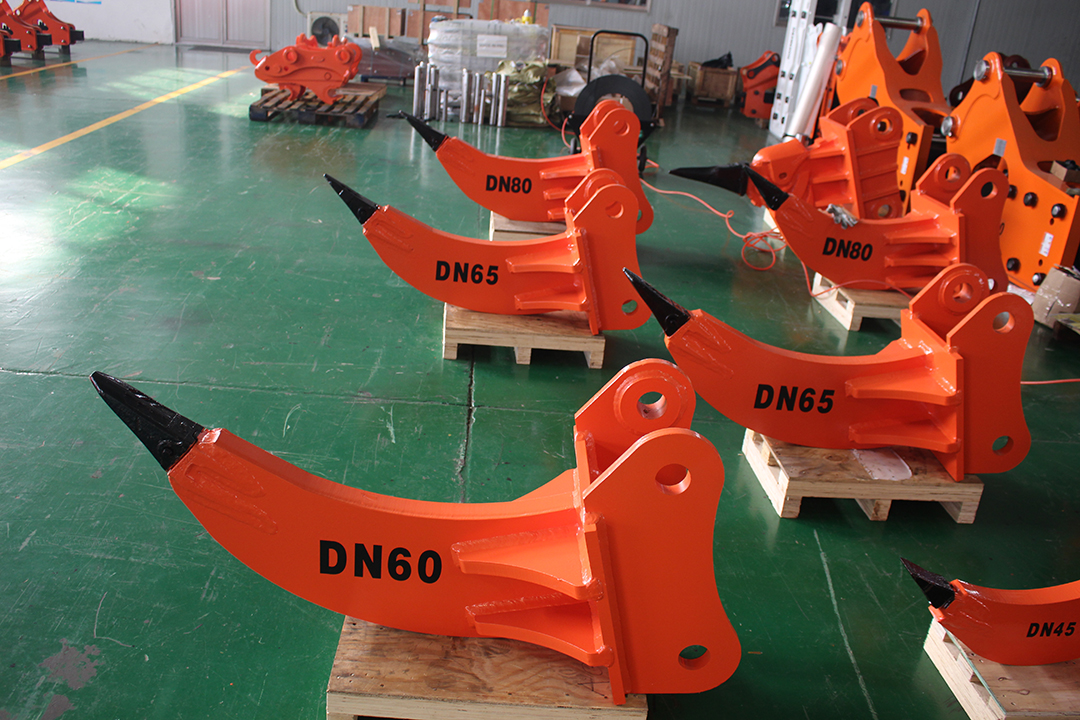

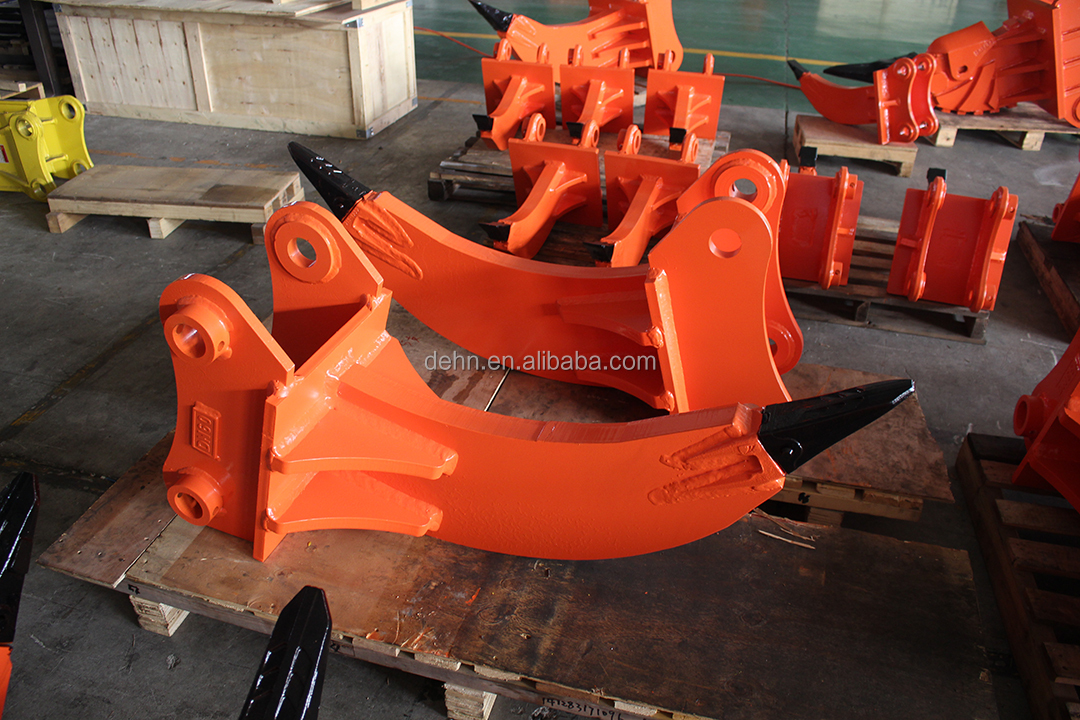

Our excavator ripper can easily rip frozen ground, hard earth,stone and land waste

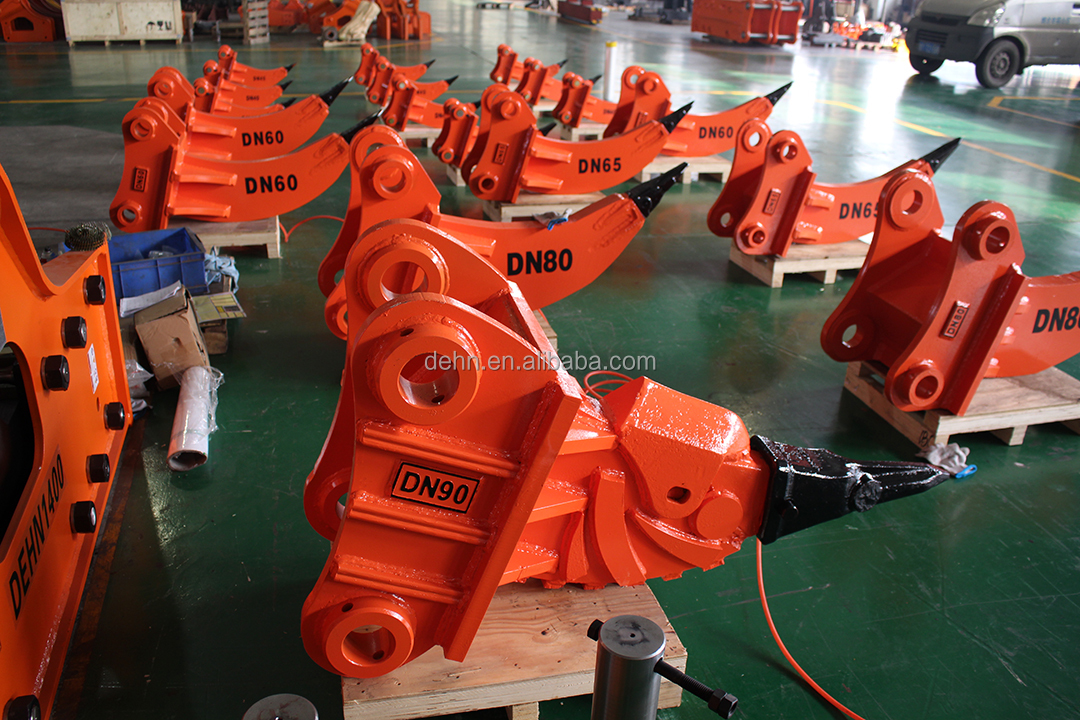

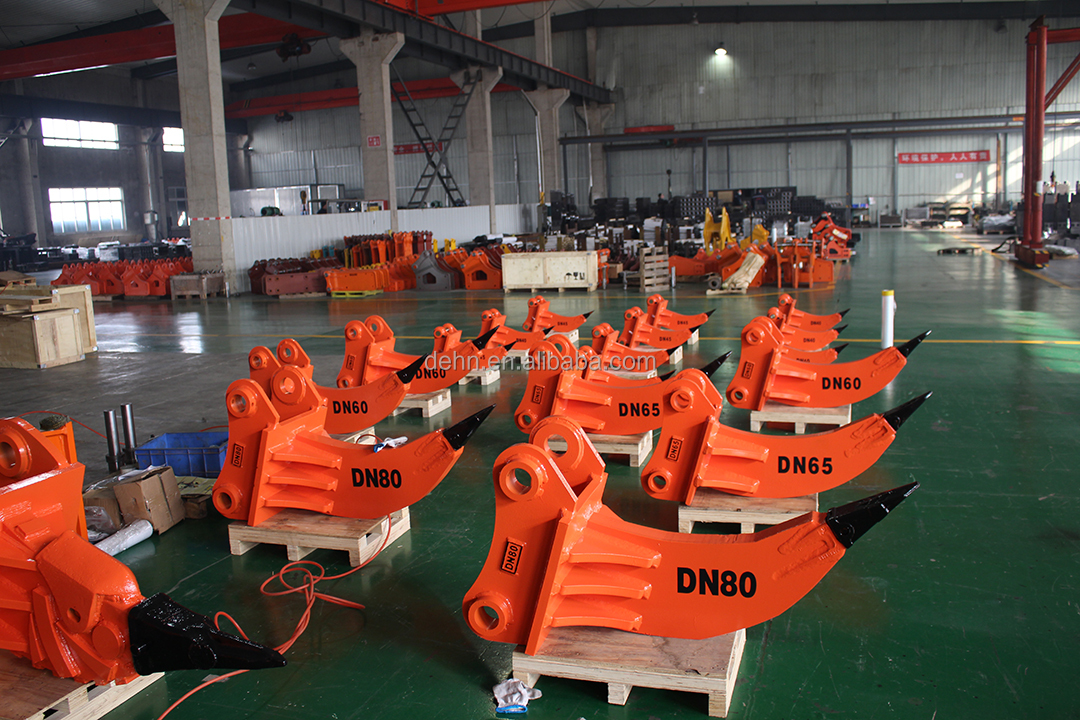

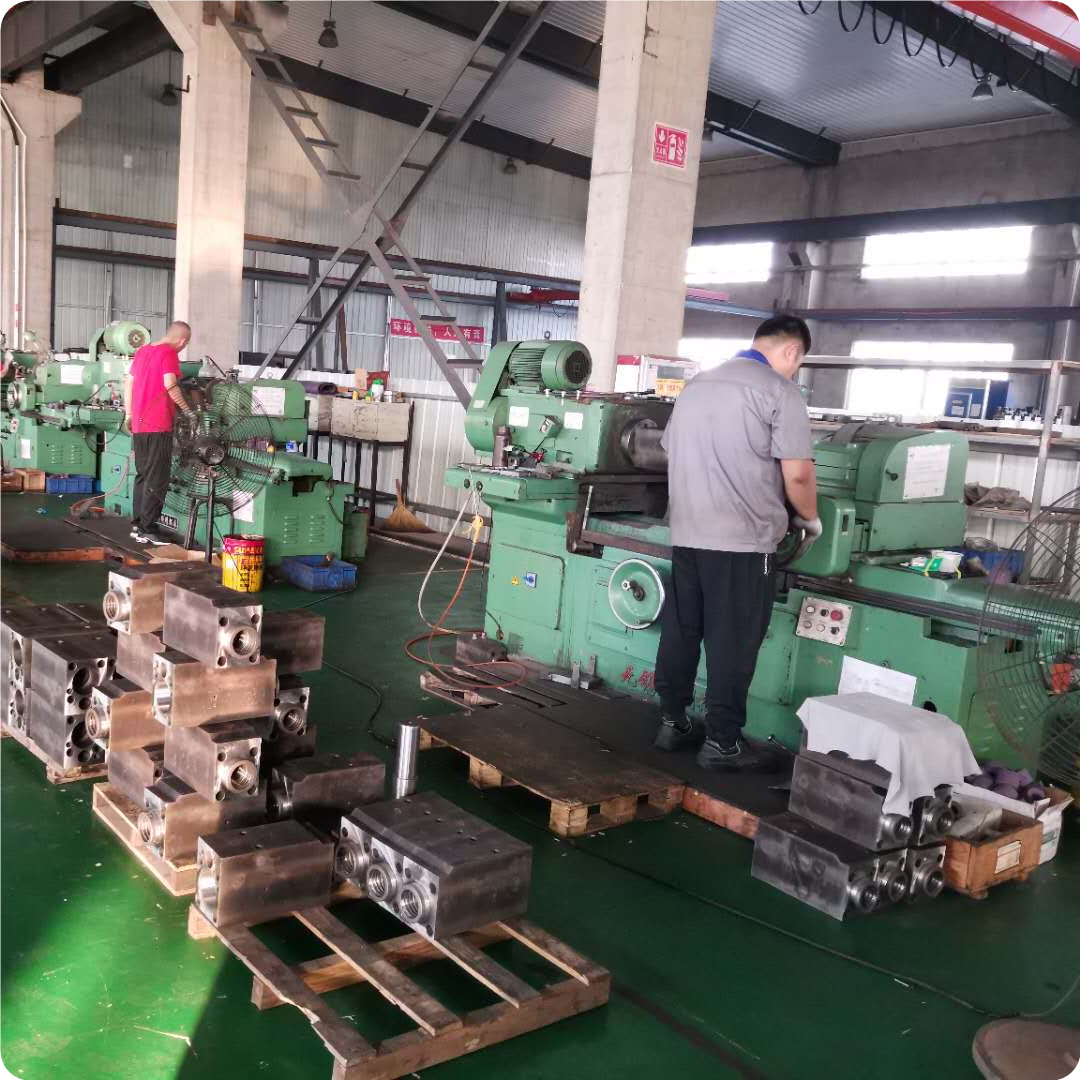

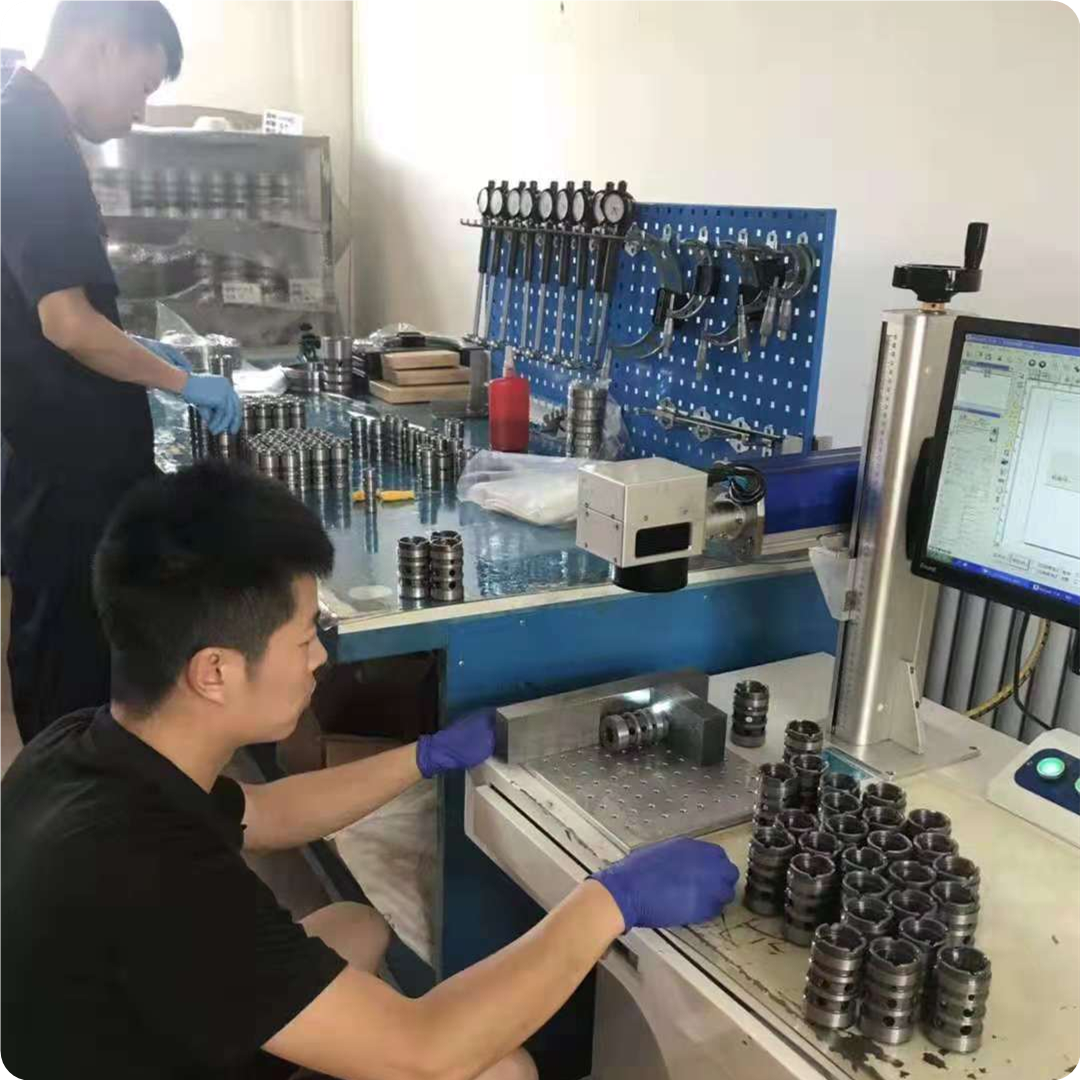

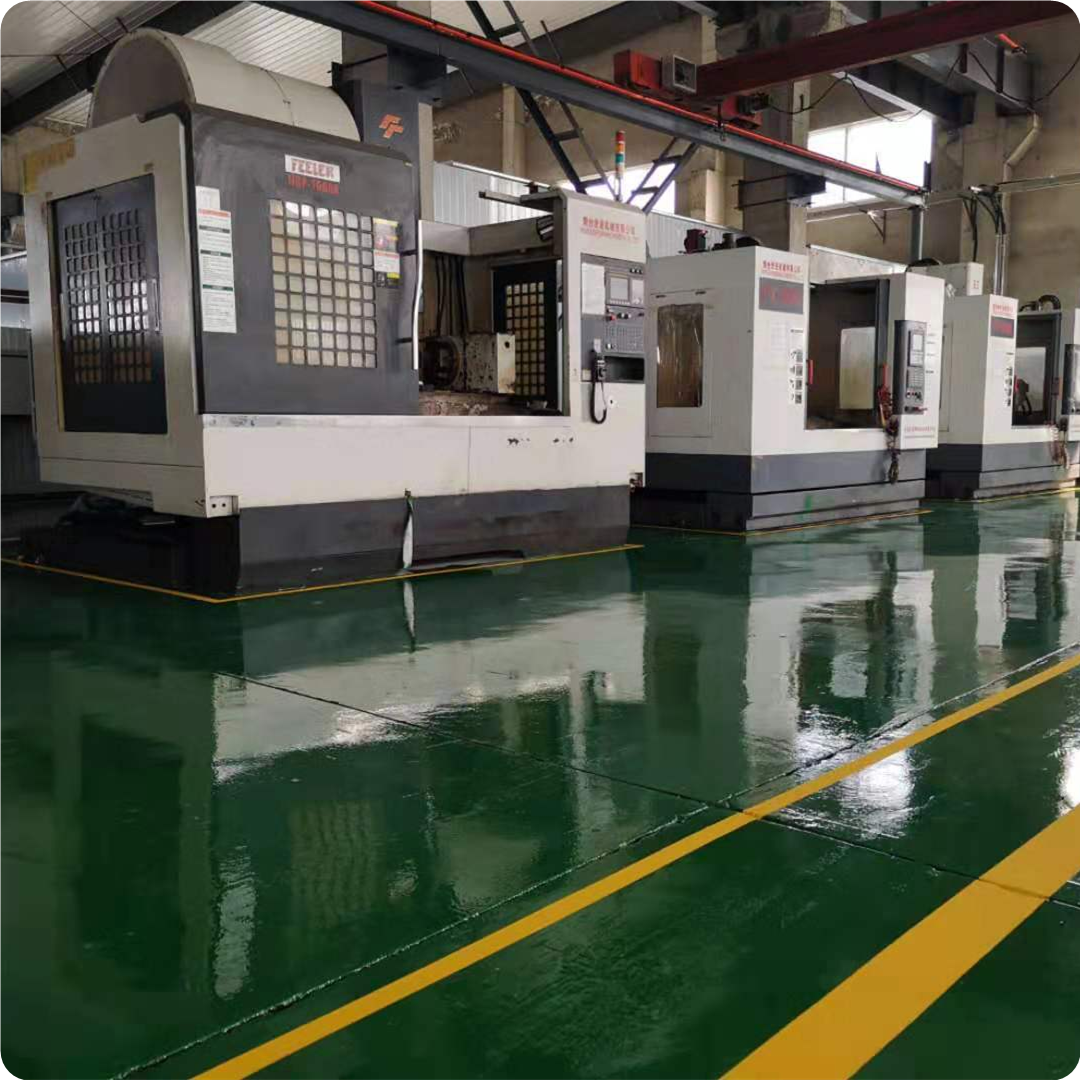

Our Factory
DEHN brand has been approved CE certificate and 4 product patents since 2010. By using the piston recoil energy, to increase performance without additional hydraulic flow input, DEHN rock breakers could achieve optimum performance at low cost, in addition to the SIMPLE body design, with only 2 moving parts, leading to lowest maintenance and repairing cost, which eventually makes your investment best valued!
FAQ
1.Is that the main body color customized?
Sure ,but we recommend you yellow, blue and orange.
2. How many days for the delivery time ?
It is about 3-7 working days after the order confirmation.
3. What kind of payments you accept?
Now we accept T/T, L/C or Western Union, other terms also could be negotiated,
4. Are you able to manufacturing products according to customer's design?
Sure, we have made many special orders from abroad since 2010.So we have enough ability to deal with any cases. OEM certificate is available to provided .
5.What's your advantages in the machinery manufacturing industry?
Fast delivery time ,High quality products, Best customer service ,Adopting the latest production technology.
6. Are you sure that your product will fit my excavator?
Our chisel can be adapted to different excavators. Show me your model number, and we would find you best match products.
7. How about the packing of the goods?
We follow the standard export package, wood cases, or as customers' demands
8. How about the packing of the goods?
Standard export package, wood cases, or as customers' demands.
